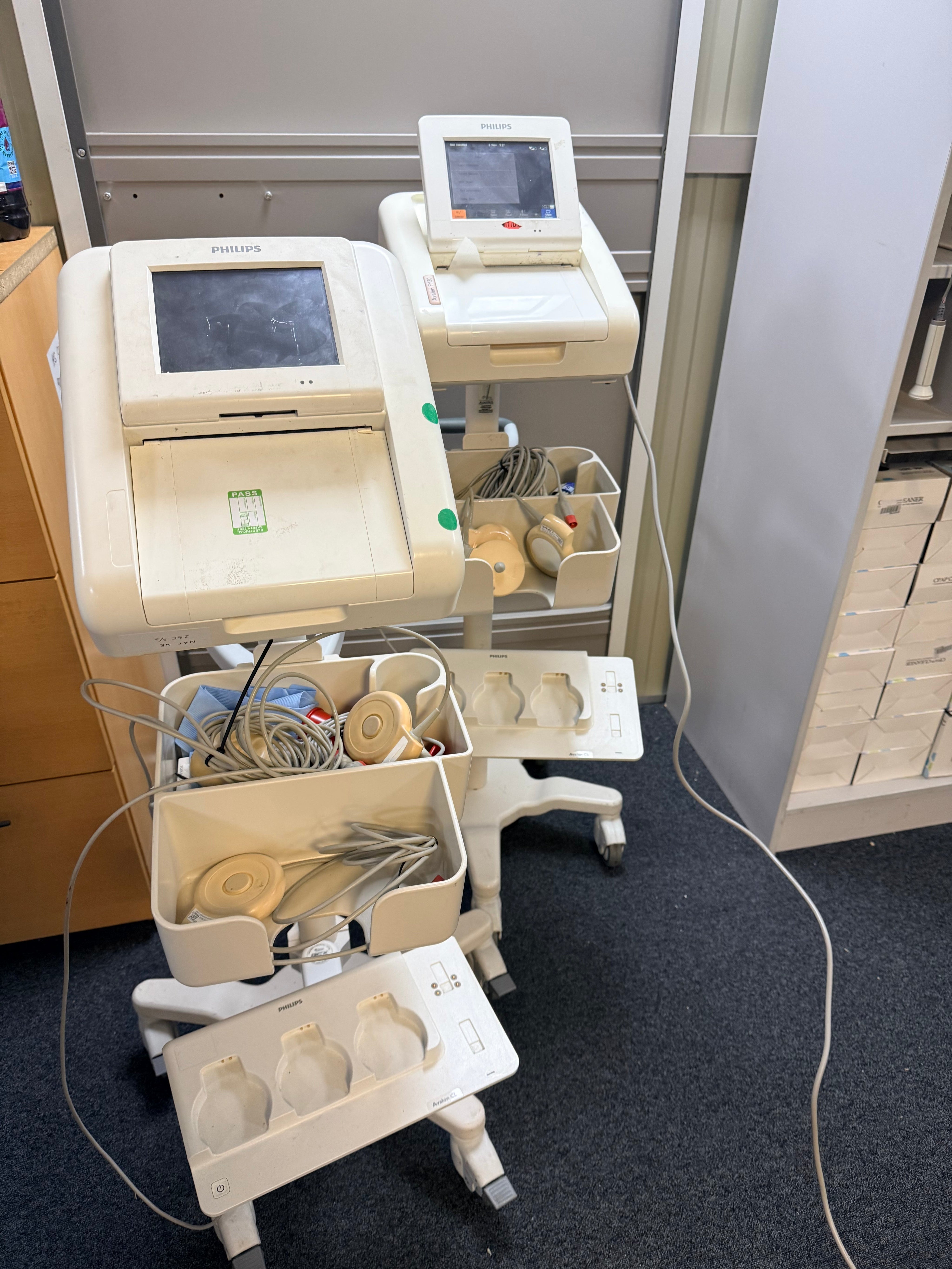

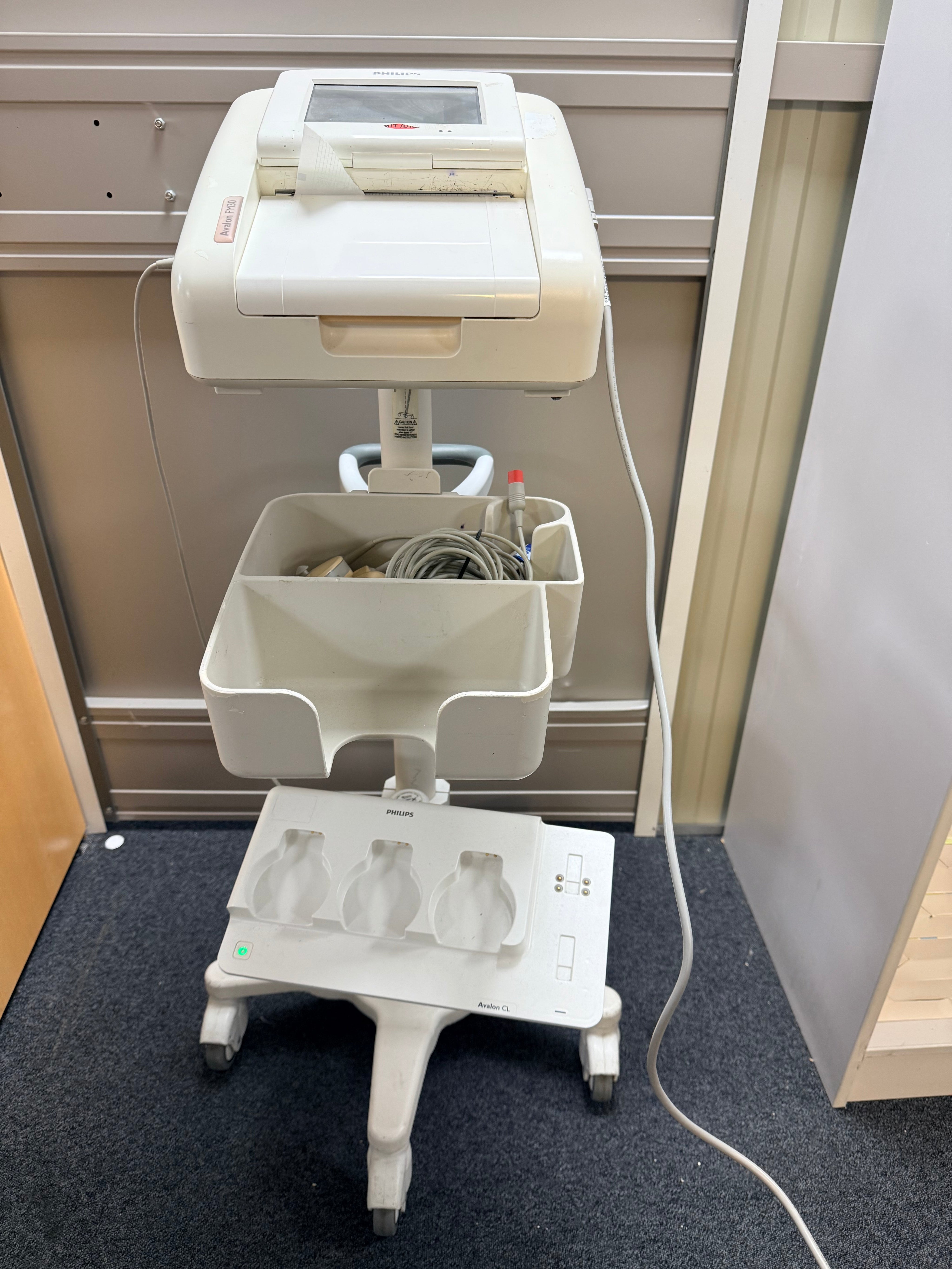

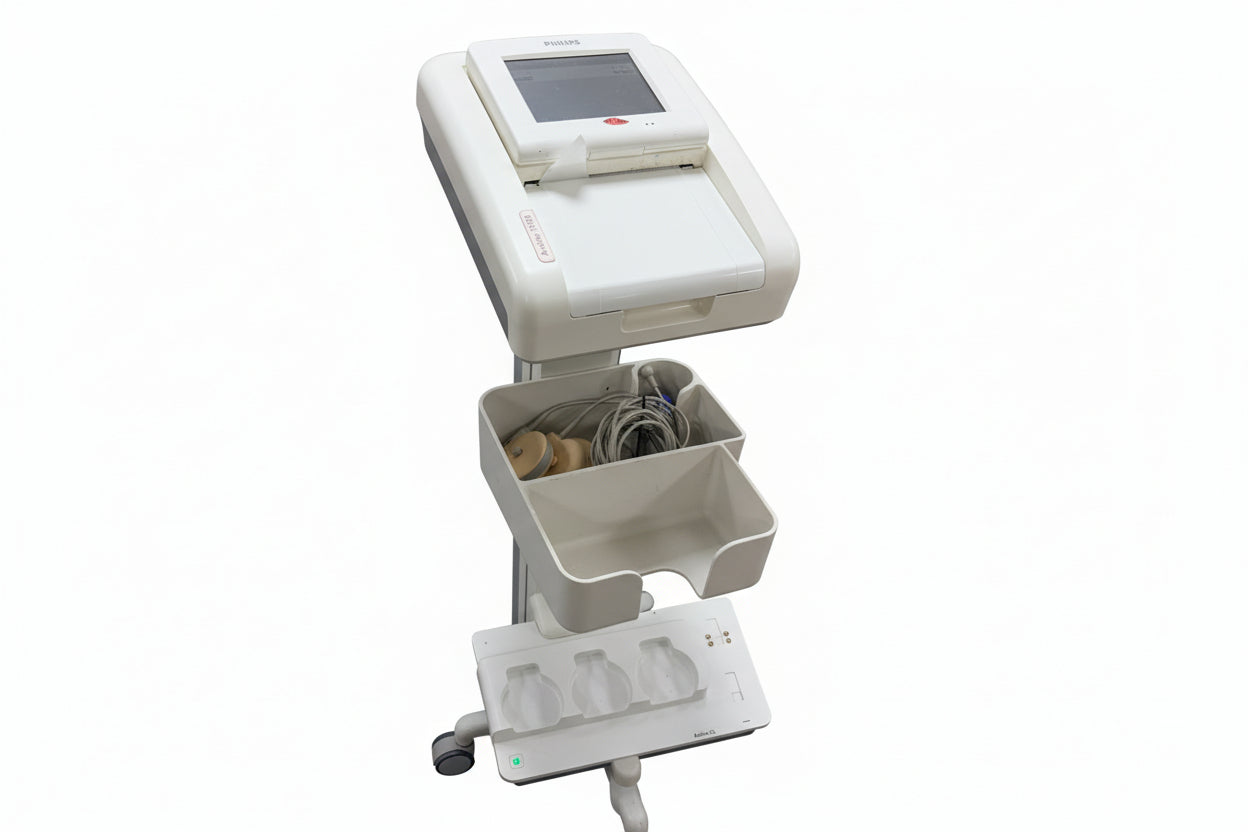

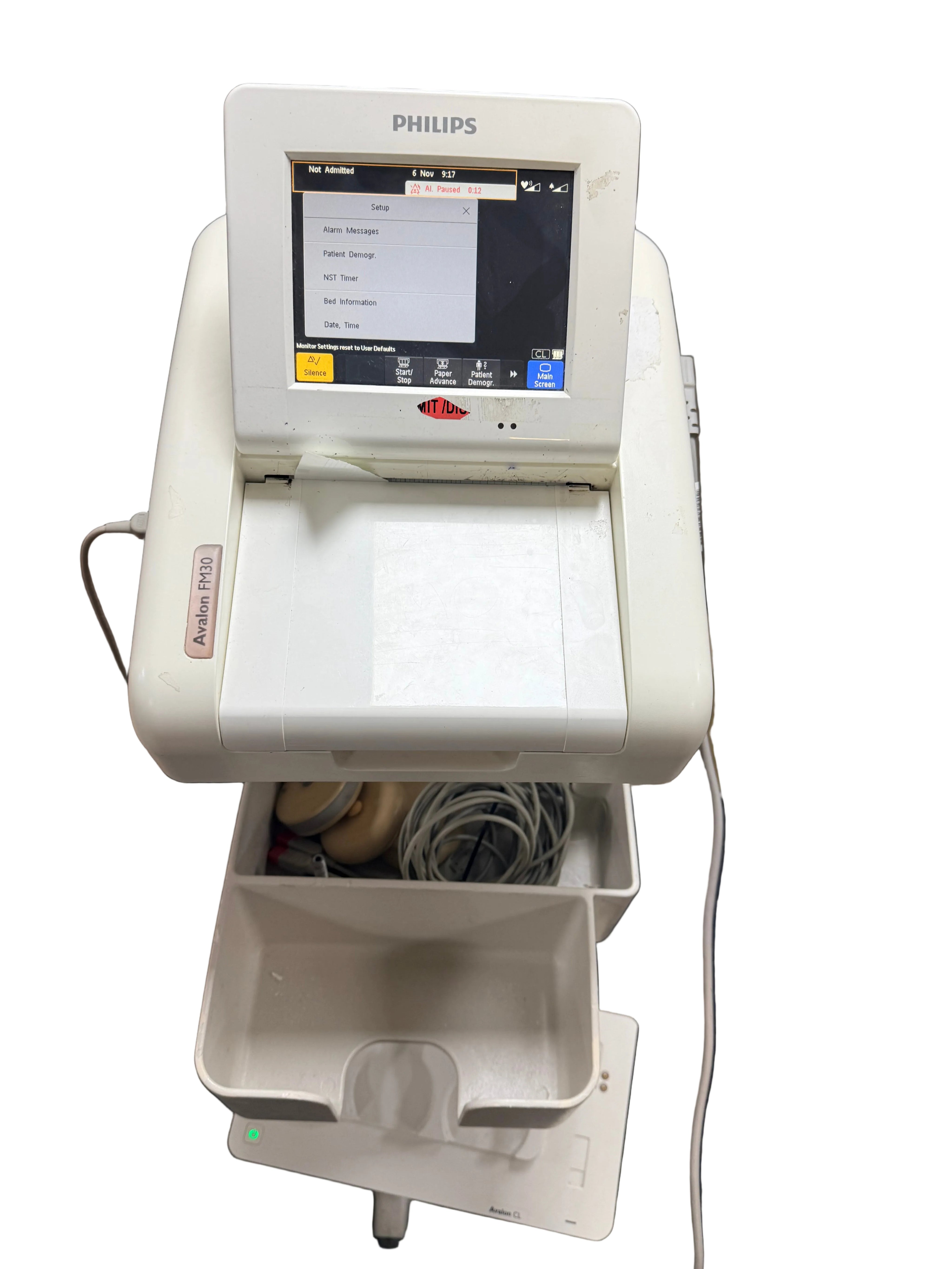

Philips Avalon FM30 Foetal Monitor

The foetal monitor Philips Avalon FM30 is a reliable and clinically proven monitoring system designed for intrapartum care, providing accurate and simultaneous monitoring of both foetal and maternal heart rates. Widely used in hospital maternity units, this foetal monitor supports confident clinical decision-making through advanced signal processing and automated safety features.

This foetal monitor incorporates Smart Pulse technology with automated coincidence detection, also known as cross-channel verification. This ensures that foetal and maternal heart rates are clearly distinguished, reducing the risk of signal confusion and improving overall monitoring accuracy. As a result, clinicians can rely on consistent and dependable readings during labour and delivery.

The Philips Avalon FM30 foetal monitor supports external ultrasound and TOCO monitoring as standard, with optional internal monitoring using DECG and IUP. Twin monitoring capability is included as standard, while triplet monitoring is available as an option. In addition, the foetal movement profile and NST timer are built in, supporting comprehensive intrapartum assessment.

Designed for bedside use, this foetal monitor features a 6.5-inch touchscreen display for intuitive operation and clear waveform visibility. Although a rollstand is not included, the unit remains suitable for flexible deployment within maternity wards. Battery operation is optional, offering up to four hours of runtime when fitted.

Key Features

• Foetal monitor designed for intrapartum maternal and foetal monitoring

• Smart Pulse technology with automated cross-channel verification

• Accurate separation of foetal and maternal heart rates

• External US and TOCO monitoring as standard

• Twin monitoring standard, triplets optional

• Optional internal DECG and IUP monitoring

• Foetal movement profile and NST timer included

• Compact design with touchscreen operation

Technical Specifications

General

• Care stage: Intrapartum

• Patient type: Foetal and maternal

Monitoring Parameters

• External foetal parameters: Ultrasound, TOCO

• Internal foetal parameters (optional): DECG, IUP

• Smart Pulse technology: Standard

• Cross-channel verification: Standard

• Foetal movement profile: Standard

Monitoring Capacity

• Twin capability: Standard

• Triplets capability: Optional

Display and Operation

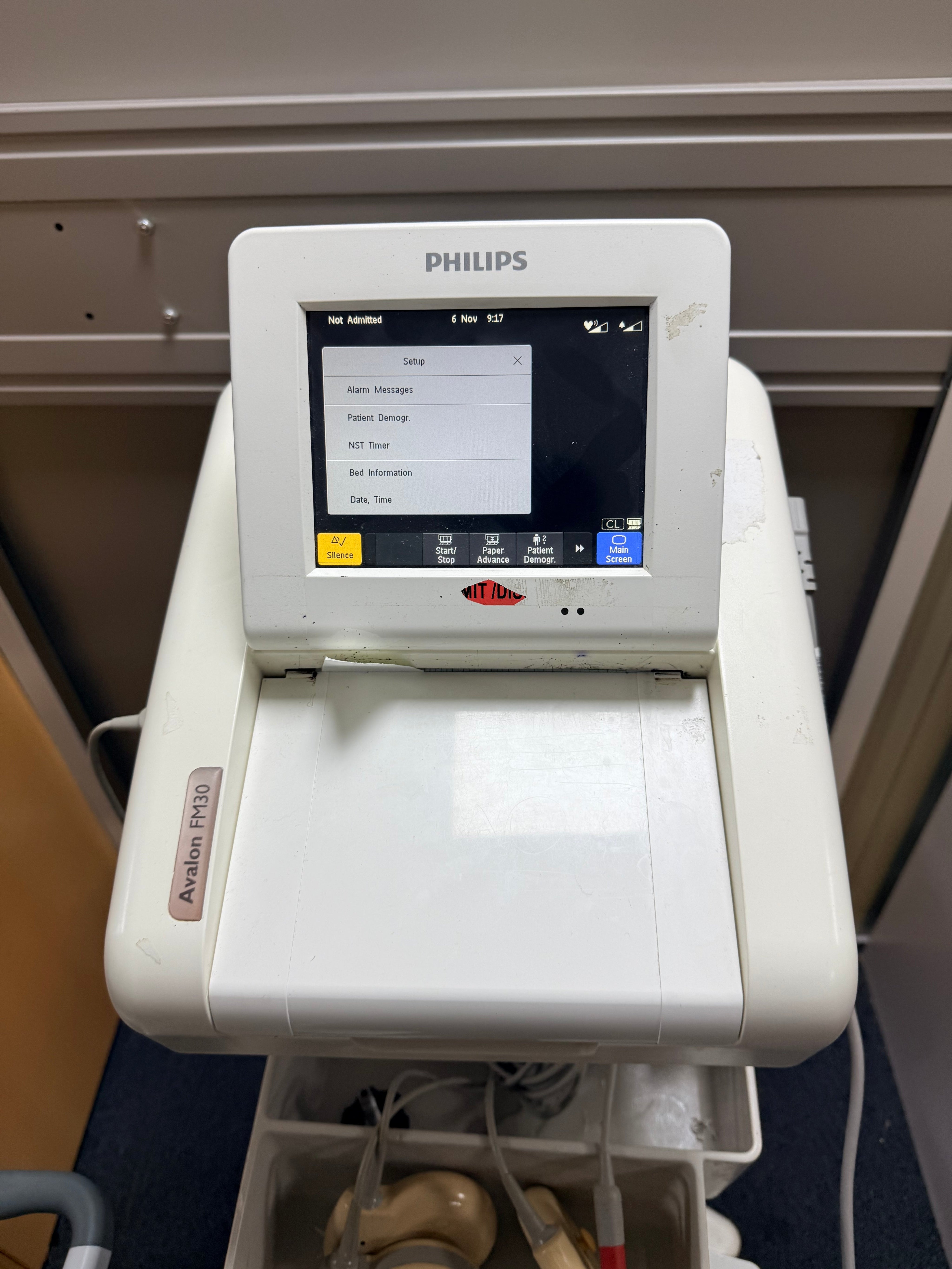

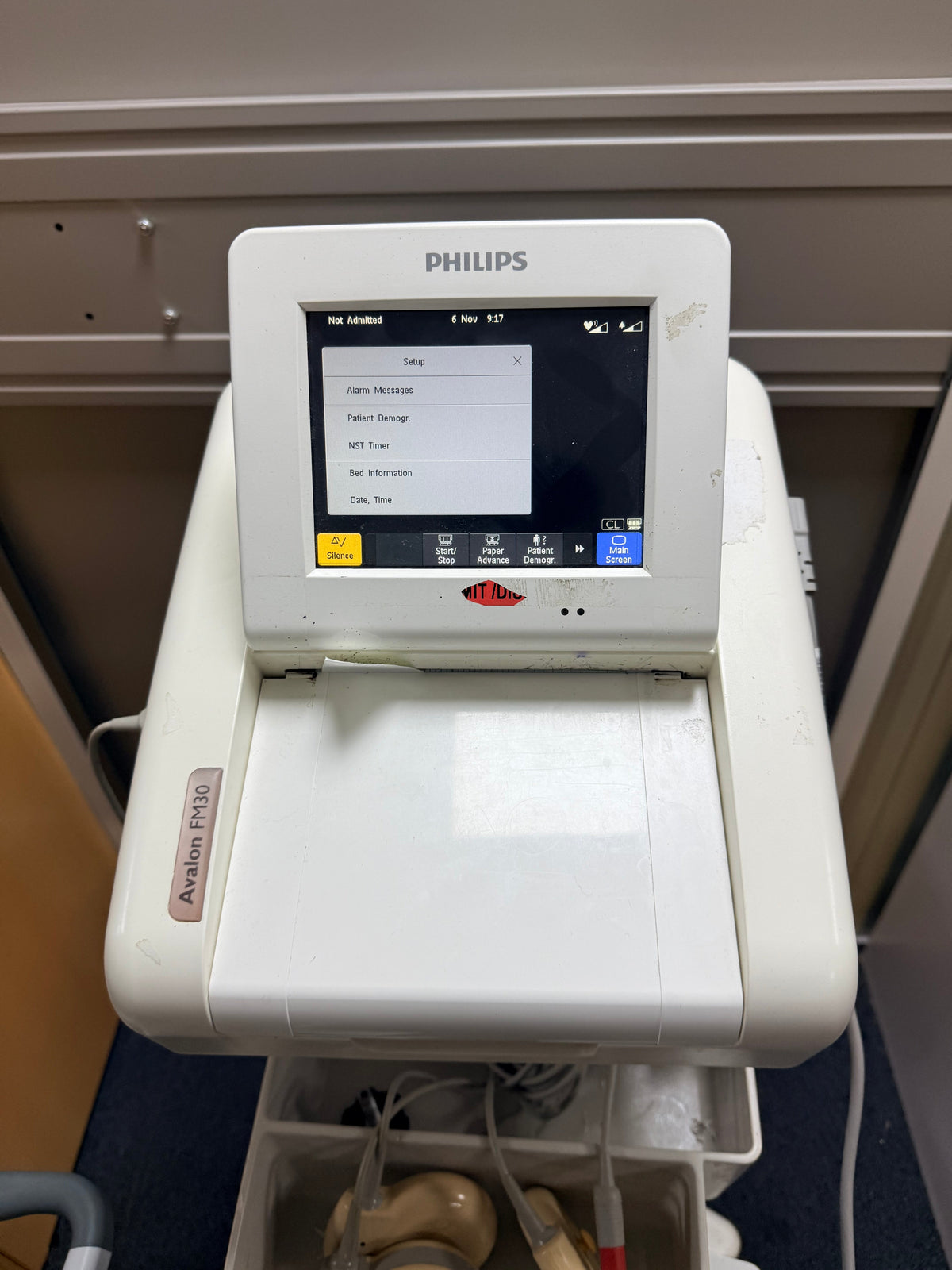

• Screen size: 6.5 in / 16.51 cm

• Touchscreen operation: Standard

Interfaces

• System interface (optional): Serial, LAN

• PS/2 interfaces: Optional

Data and Storage

• NST timer: Standard

• NST trace interpretation (optional): Up to three FHR

• Data buffer: Up to 1 hour

Power and Weight

• Battery operating time (optional): Up to 4 hours

• Weight without battery: 5.1 kg

• Weight with battery: 5.3 kg

What’s Included

• 1 × Philips Avalon FM30 Foetal Monitor

Not Included

• Rollstand / trolley (not included in shipping)

Important Shipping Note

The shipping price does not include the trolley stand. Customers may collect the unit themselves or arrange their own shipping if required.
